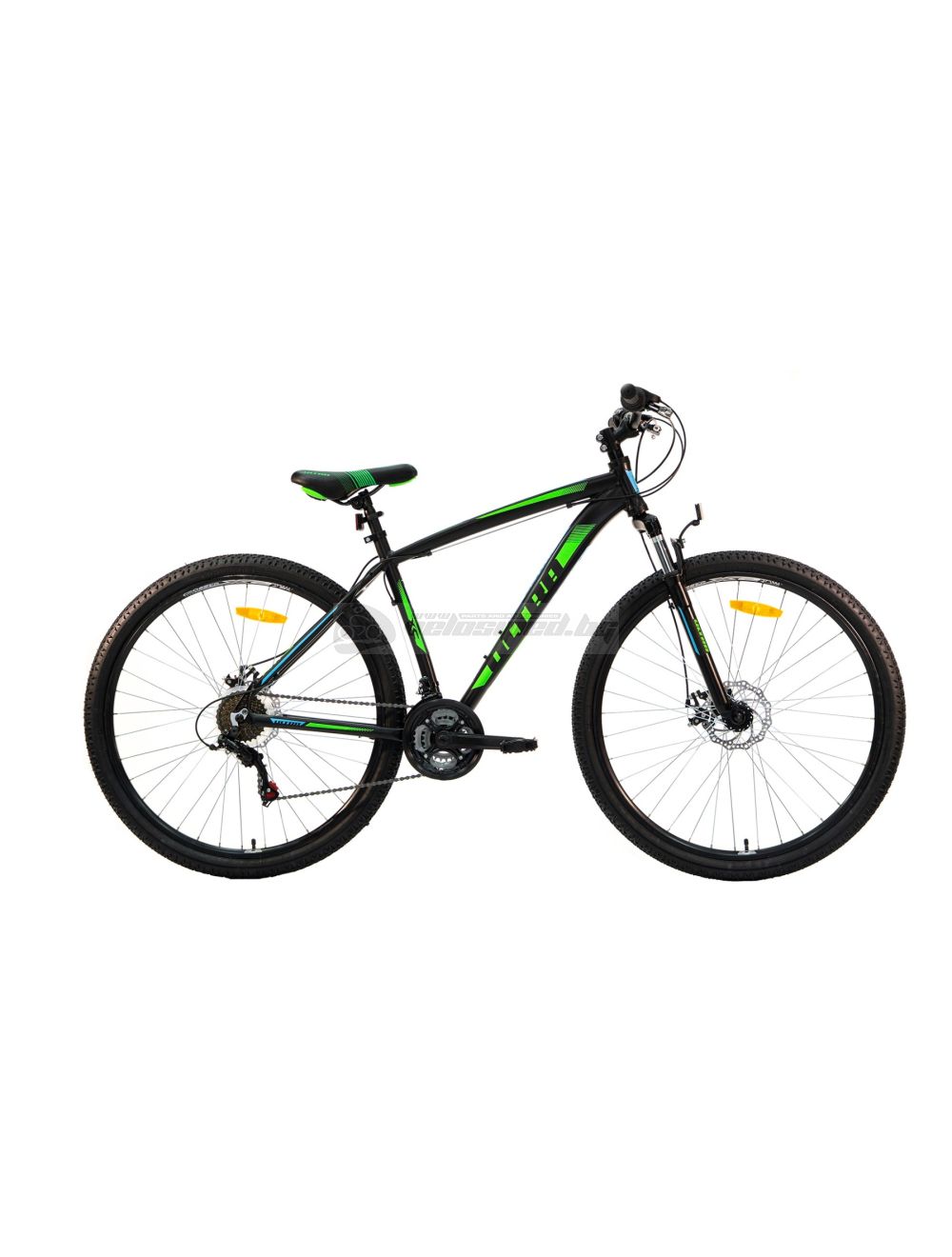

Ultra Nitro 29" MDB
The NITRO model is an entry-level MTB - hard tail type. Both wheeled versions of the bike are equipped with 21 speeds and components from the SHIMANO series, as well as mechanical disc brakes, guaranteeing good braking and easy adjustment, and adequate road behavior is ensured by balloon tires with a normal off-road protector, mounted on Crosser rims with a double-walled aluminum profile.
Spec:
|
Frame |
Aluminium – ALLOY 6061 / 29”. Specially molded tubes with variable cross-sectional shape. For disc brake. Color - black or blue, with stickers under the varnish. Heights: 440 / 480 / 520mm |
|
Fork |
Amortization - stroke 80mm, steel, with rod 1-1/8" and guides Ø25.4mm. For disc or V-brake type brake. Damping element - spiral spring. |
|
Fork cups |
XR W01, semi-integrated 1.1/8”, + distance bushings 2 x 10mm. |
|
Rudder |
Steel, black, curved type, ∅ 22.2mm (at pawl ∅ 25.4 mm), length 600 mm, rise 30mm. |
|
Paw |
Aluminium, black matt, offset 80mm, angle +15g for a handlebar with a central part Ø25.4 and a 1.1/8" fork stem. |
|
Grips |
HERRMANS UDE 92B/B, black. |
|
Seat |
ED, black base with color graphics |
|
Seat peg |
Steel, black matt, ∅ 27.2mm, length 300mm. |
|
Seat Bracket |
ED, ∅ 31.8 mm, black, with quick fixing bracket. |
|
Speeds |
21 speed SHIMANO system |
|
Commands |
SHIMANO RS35-7 |
|
Courbeli |
XH P013, steel, with triple crown and external chain guard. |
|
Crank axis |
D type，5pcs，3S axle |
|
Front derailleur |
SHIMANO TZ30-TS7 |
|
Rear derailleur |
SHIMANO RD-TZ50 DATT |
|
Chain |
KMC Z33 |
|
Wreath Cassette |
SHIMANO TZ21 |
|
Front hub |
JOY TECH, Q.R. axle, black, for disc brake. |
|
Rear hub |
JOY TECH, Q.R. axle, black, for disc brake. |
|
Drops |
CROSSER X3 double wall aluminum profile, with 36 spoke holes and dimensions 622x20mm, height 25mm, and silver spokes 14G |
|
Pedals |
PVC, with reflectors. |
|
Brakes |
Mechanical, disc - rotors 160 mm |
|
Brake levers |
LOGAN LL-327AE, aluminum, silver. |
|
Tires |
TRAYAL 29x2.10, black. |
The NITRO model is an entry-level MTB - hard tail type, with a front suspension fork and budget-oriented components, available in 2 wheel versions 29" and 27.5". The frame is aluminum, with classic HS geometry, modern look and sufficient structural strength. The front tube is of the wide internal (44mm) standard size - for semi-integrated cups. The overlapping upper and lower ones behind it have a specially formed profile and a variable cross-sectional shape, increasing the stiffness of the structure in the front part, in order to counteract the bending in this area (when treading bumps at speed). The frames are available in 2 color versions for each of the wheel sizes, each with a specific decor set under the lacquer. The seats and bumpers of the wire controlling the 2nd derailleur are color adapted to the main active color of the decor, giving a completeness to its sporty look. The front suspension forks are all steel, using a coil spring for damping, providing decent energy efficiency when driving over rough terrain. Both wheeled versions of the bike are equipped with 21 speeds and components from the SHIMANO series, as well as mechanical disc brakes, ensuring good stopping and easy adjustment, and adequate road behavior is ensured by balloon tires with normal off-road tread mounted on the Crosser rims with a double-walled aluminum profile.
