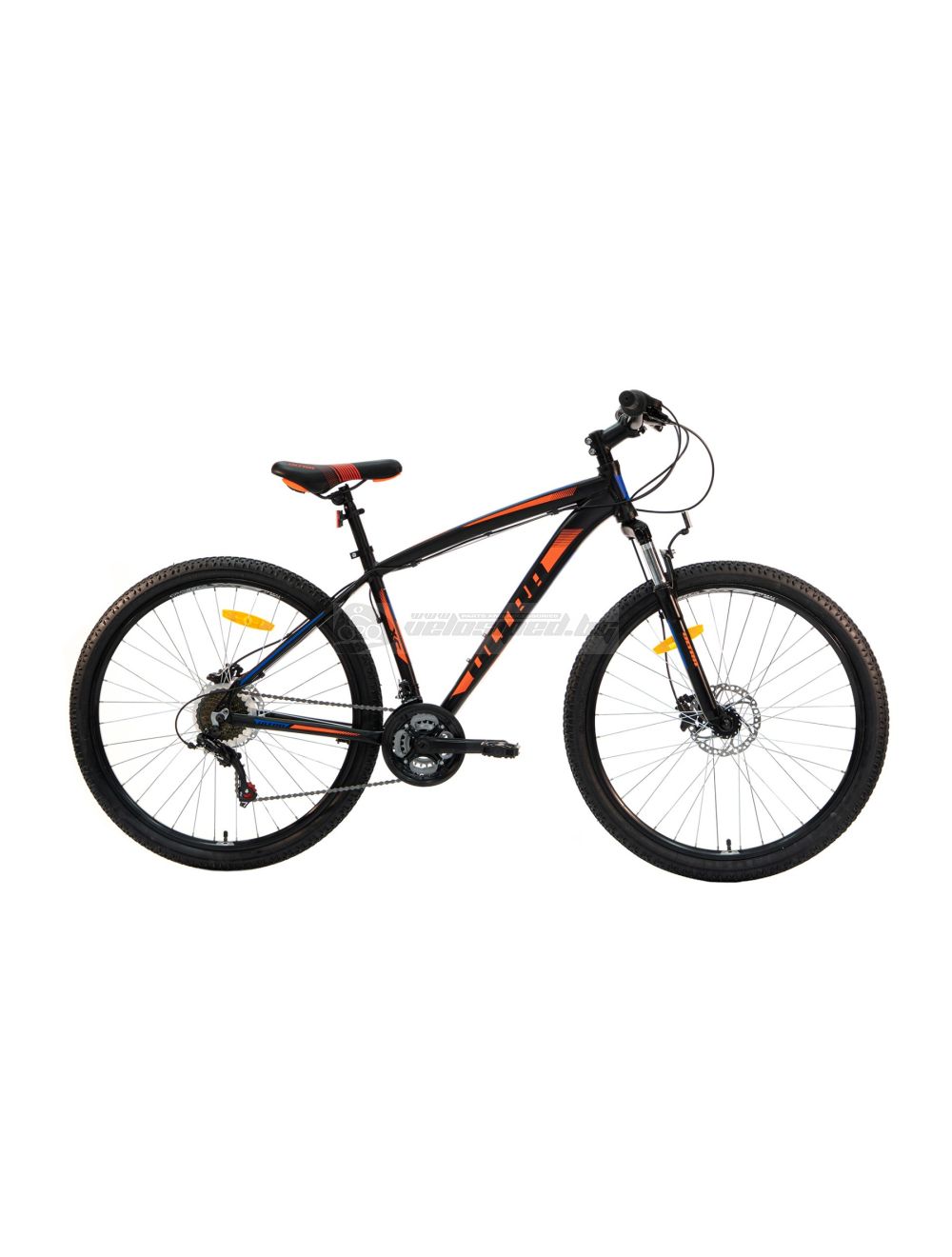

Ultra Nitro 27.5" HDB
The NITRO model is an entry-level MTB - hard tail type. Both wheeled versions of the bike are equipped with 21 speeds and components from the SHIMANO series, as well as LOGAN hydraulic disc brakes, guaranteeing good braking , and adequate road behavior is provided by balloon tires with a normal off-road tread, mounted on Crosser rims with a double-walled aluminum profile.
Spec:
|
Frame |
Aluminium – ALLOY 6061 / 27.5”. Specially molded tubes with variable cross-sectional shape. For disc brake. Color - black or blue, with stickers under the varnish. Heights: 440 / 480 / 520mm |
|
Fork |
Amortization - stroke 80mm, steel, with rod 1-1/8" and guides Ø25.4mm. For disc or V-brake type brake. Damping element - spiral spring. |
|
Fork cups |
XR W01, semi-integrated 1.1/8”, + distance bushings 2 x 10mm. |
|
Rudder |
Steel, black, curved type, ∅ 22.2mm (at pawl ∅ 25.4mm), length 600mm, rise 30mm. |
|
Paw |
Aluminium, black matt, offset 80mm, angle +15g for a handlebar with a central part Ø25.4 and a 1.1/8" fork stem. |
|
Grips |
HERRMANS UDE 92B/B, black. |
|
Seat |
ED, black base with color graphics |
|
Seat peg |
Steel, black matt, ∅ 27.2mm, length 300mm. |
|
Seat Bracket |
ED, ∅ 31.8 mm, black, with quick fixing bracket. |
|
Speeds |
21 speed SHIMANO system |
|
Commands |
SHIMANO RS35-7 |
|
Courbeli |
XH P013, steel, with triple crown and external chain guard. |
|
Crank axis |
D type，5pcs，3S axle |
|
Front derailleur |
SHIMANO TZ30-TS7 |
|
Rear derailleur |
SHIMANO RD-TZ50 DATT |
|
Chain |
KMC Z33 |
|
Wreath Cassette |
SHIMANO TZ21 |
|
Front hub |
JOY TECH, Q.R. axle, black, for disc brake. |
|
Rear hub |
JOY TECH, Q.R. axle, black, for disc brake. |
|
Drops |
CROSSER X3 double wall aluminum profile, with 36 spoke holes and dimensions 622x20mm, height 25mm, and silver spokes 14G |
|
Pedals |
PVC, with reflectors. |
|
Brakes |
LOGAN hydraulic, disc - rotors 160 mm |
|
Brake levers |
LOGAN LL-327AE, aluminum, silver. |
|
Tires |
MITAS 27.5*2.10, black. |
| Color | Black |
|---|
